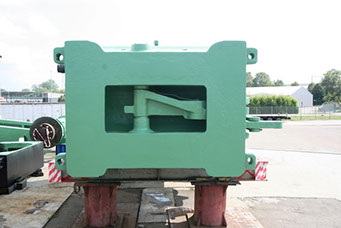

6000 Ton Ajax Forging Press - #1

MECHANICAL FORGING PRESS

Kehl, Germany

Serial # 4953

Record # 194

1966

Specifications

Strokes Per Minute:

Stroke Length:

Shut Height:

Die Seat(f-b):

Die Seat(r-l):

Ram Face(f-b):

Ram Face(r-l):

Floor Space(f-b):

Floor Space(r-l):

Height Above Floor:

Net Weight:

Upper/Lower Knock Outs:

Description:



Additional Info:

38

19"

48-1/8"

70"

70"

66"

66"

229"

229"

287 1/2"

944,000 lbs. approx.

yes

72" Distance between columns 36"W x 48"H Window 90" 4-Plate Vent. Clutch 400 HP Motor,
900 RPM.

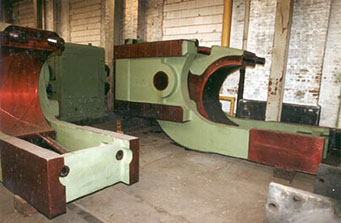

Excellent Condition - Extremely well maintained. Disassembled in Storage.
